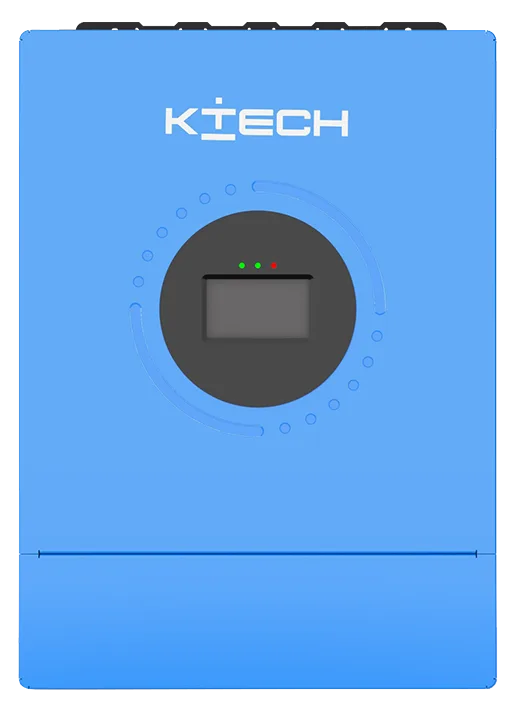

KE-5KC5L1EF

Model

KE-5KC5L1EF

KE-6KC5L1EF

KE-7KC5L1EF

KE-8KC5L1EF

KE-10KC5L1EF

KE-12KC5L1EF

Inverter Output

Rated Output Power

5000W

6000W

7000W

8000W

10000W

12000W

Max Peak Power

10000W

12000W

14000W

16000W

20000W

24000W

Rated Output Voltage

230V, Single-phase / Parallel Operation For Three-phase

Motor Loading Capacity

4.8HP

5HP

6HP

Rated Frequency

50/60Hz

Output Waveform

Pure Sine Wave

Switching Time

Typical Value: 10ms, Max Value For Single Machine: 20ms, Max Value For Parallel Machines: 30ms

Number Of Parallel Units

6

Battery

Battery Type

Lead-acid or Lithium-ion

Rated Battery Voltage

48V

Voltage Range

40~60V

Max Solar Charging Current

120A

120A

120A

180A

200A

200A

Max Mains/generator Charging Current

100A

100A

100A

100A

100A

100A

Max Hybrid Charging Current

120A

120A

120A

180A

200A

200A

Pv Input

Number Of Mppt Routes

1

2

Max Input Power

7500W

9000W

10500W

7,500W+7,500W

9,000W+9,000W

Max Input Current

27A

22A+22A

Max Open-circuit Voltage

500V

500V+500V

Mppt Operating Voltage Range

125~425V

Mains Power & Generator Input

Input Voltage Range

170~280V±7V(UPS); 90~280V±7V(APL)

Input Frequency Range

50/60Hz

Bypass Overload Current

63A

Efficiency

Mppt Tracking Efficiency

99.90%

Max Efficiency Of Battery Inversion

93%

General

Dimensions (H×W×D)

472×355×130mm

620×450×142mm

Weight

14.5kg

23.5kg

IP Rating

IP20/IP54

Operating Temperature Range

-10~55℃

Noise

≤45dB

<60dB

Cooling Method

Intelligent Air Cooling

Warranty

3 Years

Communication

Communication Method

RS485/CAN/GPRS/WIFI/Bluetooth/4G/LAN(Optional)

Certification

Overview

IEC/EN 62109-1/-2, EN 61000-6-1/-3, IEC 63027:2023, Rohs
