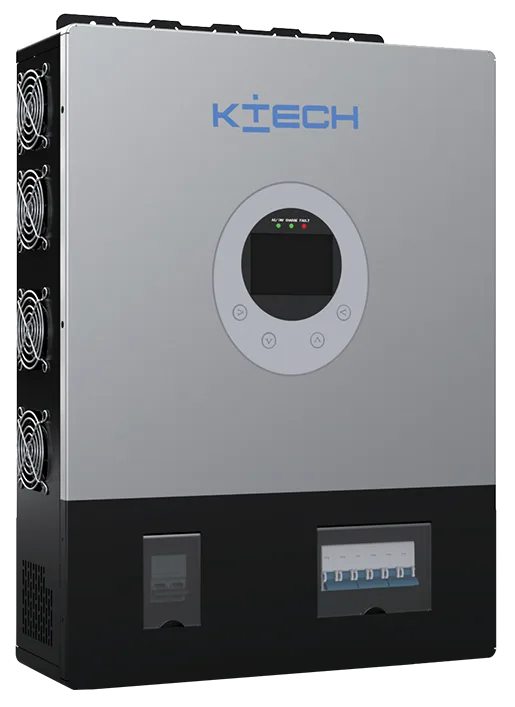

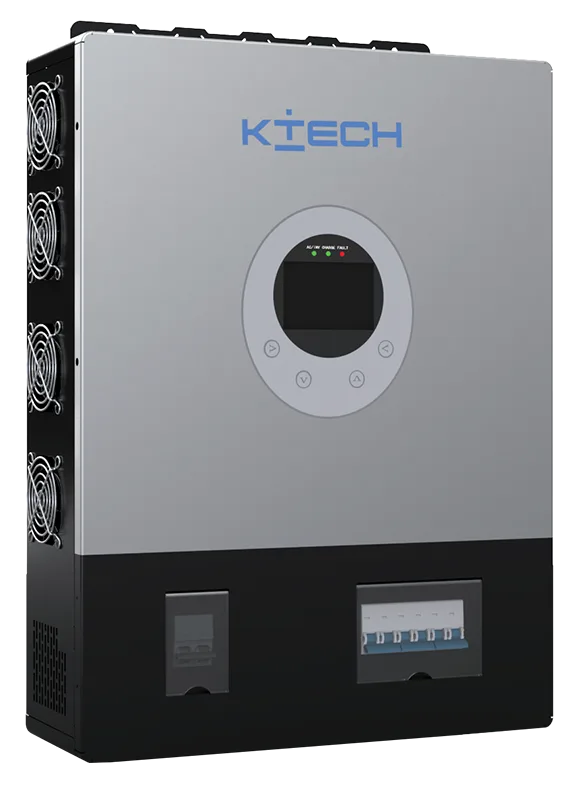

KE-5KF5LSUF

Model

KE-5KF5LSUF

KE-6KF5LSUF

KE-12KF5LSUF

KE-15KF5LSUF

Inverter Output

Rated Output Power

5000W

6000W

12000W

15000W

Max Peak Power

10000W

12000W

24000W

30000W

Rated Output Voltage

100/110/120/127V;200/220/240V;208;220V

Motor Loading Capacity

4.8HP

6HP

Rated Frequency

50/60Hz

Output Waveform

Pure Sine Wave

Switching Time

10ms

Number Of Parallel Units

1-6 Units

Overload Protection

Adopts Inverse Time-delay Overload Protection Algorithm

Battery

Battery Type

Lithium-ion Battery/Lead-acid Battery/User-defined

Rated Battery Voltage

48V

Voltage Range

40~60V

Max Solar Charging Current

120A

240A

260A

Max Mains/Generator Charging Current

100A

140A

160A

Max Hybrid Charging Current

120A

240A

260A

Pv Input

Number Of Mppt Routes

1

2

Max Input Power

7500W

9000W

18000W

22500W

Max Input Current

27A

22A+22A

Max Open-circuit Voltage

500V+500V

Mppt Operating Voltage Range

125~425V

Mains Power&Generator Input

Input Voltage Range

90~140V

90~275V

Input Frequency Range

50/60Hz

Bypass Overload Current

45A

200A

Efficiency

Mppt Tracking Efficiency

99.9%

Max Efficiency Of Battery Inversion

93%

92%

General

Dimensions (HXWXD)

472X412X130mm

650X520X142mm

Weight

17.5kg

29.5kg

IP Rating

IP20, For Indoor use Only

Operating Temperature Range

-10~55°C, >45°C Derating

Noise

≤45dB

<60dB

Cooling Method

Intelligent Air Cooling

Warranty

3 Years

Communication

Communication Method

Wi-fi/Bluetooth/Rs 485/Can/Dry Contact

External Module (Optional)

4G

Certification

Overviewt

UL1741,FCC SDOC Part 15B
