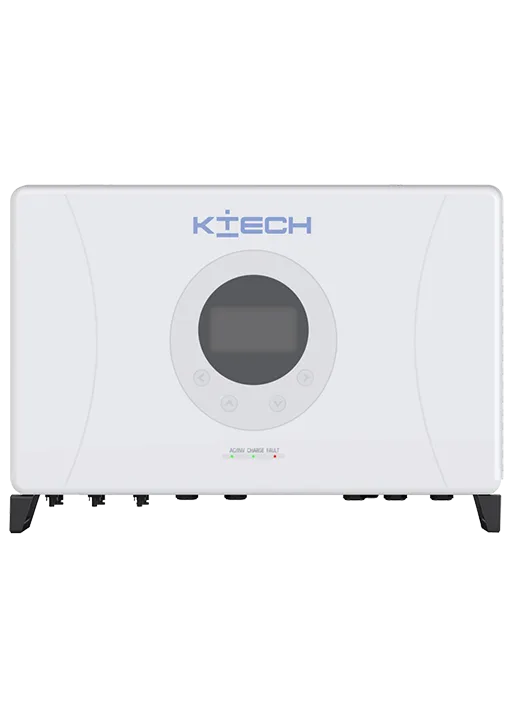

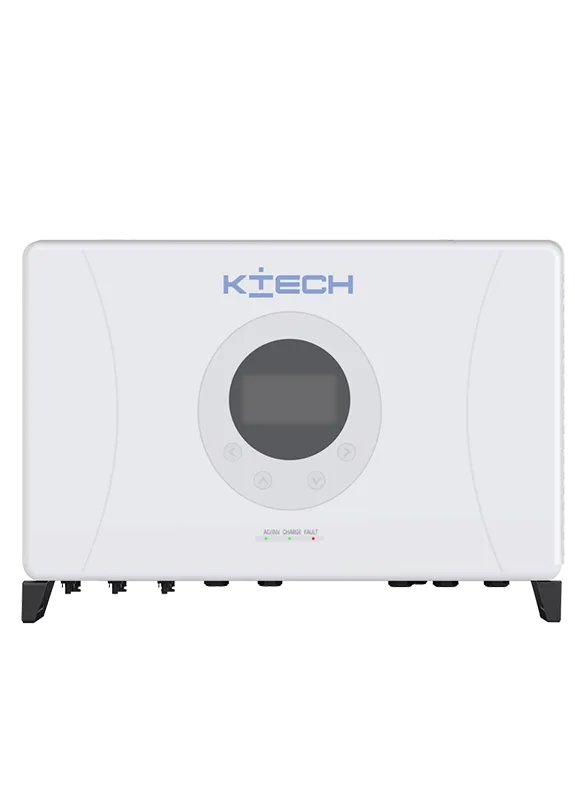

KE-29K9E53EA

Model

KE-29K9E53EA

KE-30KE53EA

KE-33KE53EA

KE-36KE53EA

KE-40KE53EA

KE-50KE53EA

DC Input

Recommended Max.Pv Power

44.85kW

45kW

49.5kW

54kW

60kW

75kW

Max Input Voltage

1100V

Rated Voltage

600V

Start-up Voltage

180V

Mppt Voltage Range

200-1000V

Max Input Current

32A/32A/32A

4×32A

Max Short Circuit Current

40A/40A/40A

4×40A

Mppt Number/Max Input Strings Number

3/6

4/8

AC Output

Rated Output Power

29.9kW

30kW

33kW

36kW

40kW

50kW

Max Apparent Output Power

32.9kVA

33kVA

36.3kVA

39.6kVA

44kVA

55kVA

Max Output Power

32.9kW

33kW

36.3kW

39.6kW

44kW

55kW

Rated Grid Voltage

3/N/PE,220V/380V,230V/400V

Rated Grid Frequency

50Hz/60Hz

Rated Grid Output Current

45.5A/43.2A

45.6A/43.3A

50.1A/47.6A

54.7A/52.0A

60.8A/57.7A

76A/72.2A

Max Output Current

50.1A

50.2A

55.1A

60.2A

66.9A

83.7A

Power Factor

>0.99(0.8 Leading – 0.8 Lagging)

Thdi

<3%

Efficiency

Max Efficiency

98.50%

98.6%

98.7%

98.80%

Eu Efficiency

98.10%

98.2%

98.3%

98.40%

Protection

DC Reverse-polarity Protection

Yes

Short Circuit Protection

Yes

Output Over Current Protection

Yes

Surge Protection

DC Type II/AC Type II

Grid Monitoring

Yes

Anti-islanding Protection

Yes

Temperature Protection

Yes

Strings Monitoring

Yes

I/V Curve Scanning

Yes

Multi Peak Scan

Yes

Integrated Afci 2.0

Optional

Integrated Pid Recovery

Optional

Integrated Dc Switch

Yes

General Data

Dimensions(HXWXD)

540×670×252mm

Weight

38.2kg

42.1kg

Topology

Transformerless

Self-consumption(Night)

<1W

Operating Ambient Temperature Range

-25~+60°C

Relative Humidity

0-100%

IP Rating

IP66

Noise Emission(Typical)

≤60dB(A)

Cooling Concept

Intelligent Fan-cooling

Max Operation Altitude

4000m

Communication

RS485, Optional:Wi-Fi, GPRS

Certification

Overview

IEC/EN62109-1/-2, EN61000-6-1/-3, IEC63027:2023, EN50549-1/-10, AS4777.2, AS60747.3, SIRIM+STCOA, RoHS
